Basic Information | |
Base Frequency | 3.9GHz |
Maximum Turbo Frequency | 4.4GHz |
Cache | Total L2 Cache: 3MB Total L3 Cache: 16MB |
Cores | 6 |
Threads | 12 |
Default TDP | 65W |
cTDP | 45-65W |
Supported Technologies | Display Port: Yes HDMI: Yes |
Memory Specifications | |
Maximum Speed | 3200MHz |
Type | DDR4 |
Max Number of Channels | 2 |
Graphics Specifications | |
Processor Graphics | Radeon Graphics |
Base Frequency | 1900 MHz |
Core Count | 7 |
Warranty Information | |
Manufacturing Warranty | 03 Years (No Warranty for Fan or Cooler) |
The AMD Ryzen 5 5600G Processor with Radeon Graphics is built in intelligence featuring 6 processor cores, 12 threads, and an astonishingly efficient 45-65W TDP. In this processor, It stands with 3.9GHz Base Clock, 4.4GHz Max Boost Clock, 3MB L2 Cache, 16MB L3 Cache with AM4 Package and TSMC 7nm FinFET CMOS. This processor is built with PCIe 3.0 x8 and Wraith Spire Thermal Solution. The AMD Ryzen 5600G Processor provides DDR4 Up to 3200MHz memory with 2 memory channels. With the high processing capability, this processor is also integrated with Radeon Graphics. The processor has a graphics frequency of 1900MHz and a graphics Core count of 7. The AMD Ryzen 5 5600G Processor is built for modern business, AMD technologies provide layers of protection, seamless manageability, and reliable longevity.
Radeon Graphics
AMD Ryzen 5 5600G Processor Enjoy High Frame Rates Together With Your Favorite Games And Enhanced Application Performance Using The CPU’s Integrated Radeon Graphics.
Precision Boost 2
AMD Ryzen 5 5600G Processors Monitor The System’s Energy Consumption, Temperatures, And Other Factors To Automatically Raise Clock Speeds, Allowing Applications To Perform Faster.
Precision Boost Overdrive
Precision Boost Overdrive Technology Takes Advantage Of Your Compatible Motherboard’s Design To Spice Up Clock Speeds Higher And For Extended Periods Of Your Time . AMD Ryzen 5 5600G Processor Also Allows You Overclock The Processor At The Touch Of A Button.
AMD StoreMI Technology
AMD StoreMI Technology Helps To Enhance Load Times And Overall System Performance By Combining Solid-State Drives And Mechanical Hard Drives Into One Hybrid Storage Drive. AMD Ryzen 5 5600G Processor Frequently Used Files And Programs Are Cached Onto The Fast SSD While Other Files Are Stored On The High-Capacity HDD.
AMD Ryzen VR Ready Premium
Ryzen VR Ready Premium Processors Are Designed To Satisfy Or Exceed The Recommended Specifications From The Highest HMD Manufacturers, Including Oculus Rift, HTC Vive, And Windows Mixed Reality For Smooth Performance On AMD Ryzen 5 5600G Processor.
AMD Ryzen Master Utility
The AMD Ryzen Master Utility Provides You With Multiple Custom Profiles To Store CPU, GPU, And DDR4 Memory Configurations. Use AMD Ryzen 5 5600G Processor To Configure Performance Parameters For The Active Cores And Adjust Memory Times. You’ll Also Optimize General Performance Or Fine Tune Your Favorite Applications.

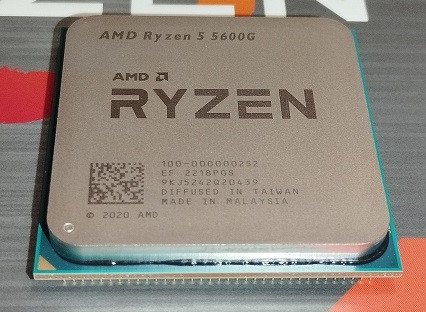

At the heart of the Ryzen 7 5700G and Ryzen 5 5600G is the new 7 nm “Cezanne” silicon that made its debut with the company’s Ryzen 5000 series mobile processors. This monolithic die features an 8-core/16-thread CPU, a Vega iGPU with up to eight compute units, updated display and media-engines, and the latest-generation memory. For the Ryzen 5 5600G in today’s review, AMD has disabled two of the CPU cores, and set the IGP shader count to 448, down from 512 on the 5700G.
Besides the IPC uplift of the new Zen 3 CPU core, Cezanne benefits from the biggest design change of this generation, which is AMD effectively doing away with quad-core complexes and putting all eight cores into a single, large CCX with a common L3 cache. This significantly improves inter-core communication, handing over of threads between the cores, and multi-threaded performance in general. Also, since the CCX “partition” is done away with, the 8 Zen 3 cores share a single 16 MB L3 cache. This means the whole processor has only half the cache of Ryzen 5000X Vermeer, which offers 32 MB L3.
Unlike the other Zen 3 processors which feature PCIe 4.0, the Ryzen 5000G APUs come with a PCI-Express 3.0 interface. There’s 16 lanes for the PCI-Express graphics slot, plus four for a CPU-connected M.2 NVMe slot, and four toward the chipset bus. Compared to older Ryzen APUs and even mobile Cezanne, this is still an improvement because those only had PCIe 3.0 x8 for external graphics. The other big change is optimizations to the dual-channel DDR4 memory controllers, which are capable of even higher memory frequencies.
Within AMD’s product stack, AMD is positioning the Ryzen 7 5700G a notch below the Ryzen 7 5800X, and the Ryzen 5 5600G just below the Ryzen 5 5600X. The 5700G is filling in for the lack of a “Ryzen 7 5700X” (a successor to the popular Ryzen 7 3700X), while the 5600G has the equally important task of succeeding the immensely successful Ryzen 5 3600. AMD’s sell here is that the monolithic design of the Cezanne silicon has some inherent advantages, such as lower latencies since the CPU cores, memory interface, and PCIe are sitting on the same die. Both chips do come with unlocked multipliers, so you can take a crack at overclocking them.
