Gigabyte B550M DS3H AC Ultra Durable MATX AMD Motherboard

Top Selling Products

Core i7-3770 Quad-Core 3.4GHz (3.9GHz Turbo) HD Graphics 4000

৳2,900.00
Core 2 Quad Q8400 - 2.66 GHz 4 MB Cash LGA 775 95W

৳800.00
Ramsta DDR3 8GB 1600MHz DESKTOP RAM With Heat Sink 3 years Warranty

৳1,250.00
Intel Core i5-3570 - Core i5 3rd Gen Ivy Bridge Quad-Core 3.4GHz (3.8GHz Turbo Boost) LGA 1155 77W Intel HD Graphics 2500 Desktop Processor

৳1,600.00
Core i5-3470 - i5 Ivy Bridge Quad-Core 3.2 GHz 3rd Gen

৳1,500.00
HyperX FURY 8GB DDR3 1600MHz Desktop RAM

৳1,000.00

Description reviews

Motherboard
Supported CPU	AMD Socket AM4, Support For 3rd Generation AMD Ryzen Processors/ 3rd Generation AMD Ryzen With Radeon™ Graphics Processors Supporting SATA And PCIe 3.0 X2 SSDs
Chipset	AMD B550
Memory	Type Dual Channel DDR4 Memory Technology Slots 4 X DIMM Supported Memory AMD Ryzen™ 5000 Series Processors: Support For DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules 3rd Gen AMD Ryzen™ Processors: Support For DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz Memory Modules 3rd Gen AMD Ryzen With Radeon Graphics Processors: Support For DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz Memory Modules Support For ECC Un-Buffered DIMM 1Rx8/ 2Rx8 Memory Modules Support For Non-ECC Un-Buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules Maximum Mamory 128 GB
Graphics	Graphics Integrated In The 3rd Generation AMD Ryzen With Radeon Graphics Processors: 1 X DVI-D Port, Supporting A Maximum Resolution Of 1920x1200@60 Hz The DVI-D Port Does Not Support D-Sub Connection By Adapter. 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz Support For HDMI 2.1 Version, HDCP 2.3, And HDR. Max Shared Memory 16 GB
Slots	PCI 1‎ X PCI Express X16 Slot (PCIEX16), Integrated In The CPU: 3rd Generation AMD Ryzen Processors Support PCIe 4.0 X16 Mode 3rd Generation AMD Ryzen With Radeon Graphics Processors Support PCIe 3.0 X16 Mode 1 X PCI Express X16 Slot (PCIEX4), Integrated In The Chipset: Supporting PCIe 3.0 X4 Mode 1 X PCI Express X1 Slot (PCIEX1), Integrated In The Chipset: Supporting PCIe 3.0 X1 Mode M.2 Socket 1‎ X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs:
Supported Storage	1‎ X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen Processors Support SATA And PCIe 4.0 X4/X2 SSDs 3rd Generation AMD Ryzen With Radeon Graphics Processors Support SATA And PCIe 3.0 X4/X2 SSDs 1 X M.2 Connector (M2B_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/2260/2280 SSDs: Supporting SATA And PCIe 3.0 X2 SSDs 4 X SATA 6Gb/S Connectors, Integrated In The Chipset: Support For RAID 0, RAID 1, And RAID 10
LAN	Realtek GbE LAN Chip (1000 Mbit/100 Mbit) Wireless Communication Module: Intel Wi-Fi AC 3168 WIFI 802.11a/B/G/N/Ac, Supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support For 11ac Wireless Standard And Up To 433 Mbps Data Rate
Audio	Realtek ALC887 Codec High Definition Audio 2/4/5.1/7.1-Channel
USB Port	CPU: 4 X USB 3.2 Gen 1 Ports On The Back Panel Chipset: 2 X USB 3.2 Gen 1 Ports Available Through The Internal USB Header 6 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 2 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB 3.2 Gen 1 Header 1 X USB 2.0/1.1 Header 1 X Trusted Platform Module (TPM) Header (2x6 Pin, For The GC-TPM2.0_S Module Only) 1 X Serial Port Header 1 X Clear CMOS Jumper 1 X Q-Flash Plus Button

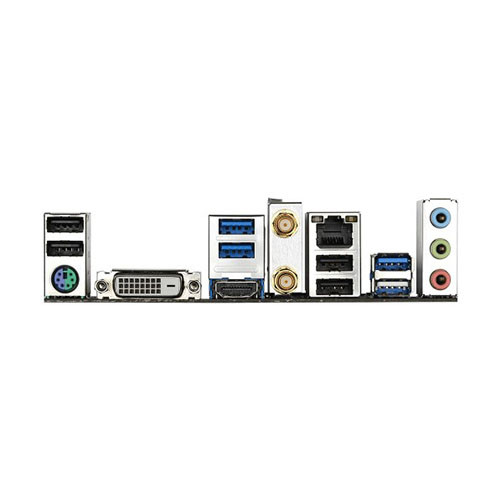

External I/O Ports	1 X PS/2 Keyboard/Mouse Port 1 X DVI-D Port 2 X SMA Antenna Connectors (1T1R) 1 X HDMI Port 4 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X RJ-45 Port 3 X Audio Jacks
Form Factor	Micro ATX Form Factor; 24.4cm X 24.4cm
BIOS	1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	03 Years

Download
