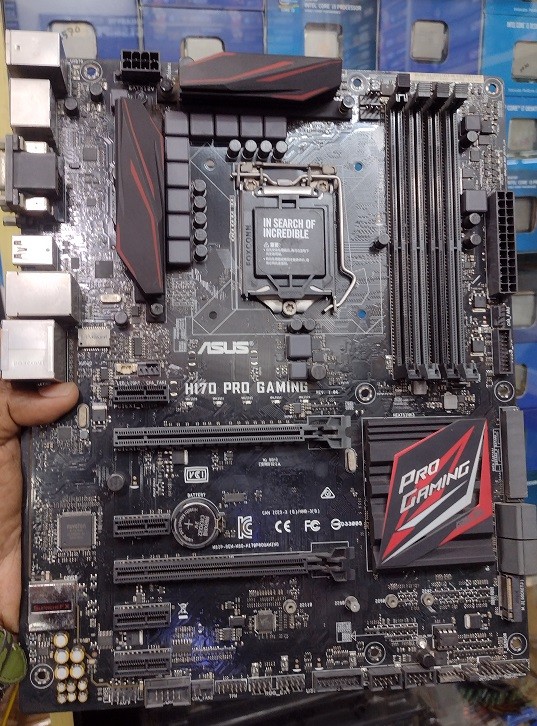

ASUS H170 PRO GAMING HDMI SATA 6Gb/s USB 3.1 Full ATX

Brand ASUS

Model H170 PRO GAMING

Supported CPU

CPU Socket Type LGA 1151

CPU Type Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors

* Not Compatible with Intel 8th Gen CPUs

* Refer to www.asus.com for CPU support list

Supported CPU Technologies Turbo Boost Technology 2.0

* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipsets

Chipset Intel H170

Onboard Video

Onboard Video Chipset Integrated Graphics Processor - Intel HD Graphics support

Multi-VGA output support: HDMI/DVI-D/RGB/DisplayPort ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Maximum shared memory of 512MB

Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Memory

Number of Memory Slots 4x288pin (DDR4)

Memory Standard DDR4 2133

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Maximum Memory Supported 64GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 3.0 x16 1 x PCIe 3.0/2.0 x16

1 x PCIe 3.0/2.0 x16 (x4 mode, black)

PCI Express x1 4 x PCIe 3.0/2.0 x1

Storage Devices

Serial ATA (SATA) 4 x SATA 6Gb/s

SATA Express 1 x SATA Express port (compatible with 2 x SATA 6.0Gb/s ports)

M.2 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*

* When the M.2 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.

SATA RAID 0/1/5/10

Onboard Audio

Audio Chipset SupremeFX High Definition Audio CODEC

Audio Channels 8 Channels

Onboard LAN

LAN Chipset Intel I219-V

Max LAN Speed 1Gbps

Rear Panel Ports

Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 Type-A

PS/2 1 x PS/2 keyboard/mouse port

Video Ports 1 x DVI-D

1 x D-Sub

HDMI 1 x HDMI

RJ45 1 x RJ45

DisplayPort 1 x DisplayPort

USB 3.1 1 x USB 3.1 Gen 2 (black) USB Type-C

1 x USB 3.1 Gen 2 (red) Type-A

2 x USB 3.1 Gen 1

USB 1.1/2.0 2 x USB 2.0

S/PDIF Out 1 x Optical

Audio Ports 5 Ports

Internal I/O Connectors

Onboard USB 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

Other Connectors 1 x COM port(s) connector(s)

1 x CPU Fan connector(s) (1 x 4-pin)

1 x CPU OPT Fan connector(s) (1 x 4-pin)

3 x Chassis Fan connector(s) (3 x 4-pin)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x CPU OV

1 x Clear CMOS jumper(s)

1 x 5-pin EXT_FAN (Extension Fan) connector

1 x ROG extension (ROG_EXT) header(s)

1 x 14-1-pin TPM connector

Physical Spec

Form Factor ATX

Dimensions (W x L) 12.0" x 9.6"

Power Pin 1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

Features

Features Multi-GPU Support:

Supports AMD Quad-GPU CrossFireX Technology

Special Features:

Gamer's Guardian:

- ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports

- DRAM Overcurrent Protection

- Stainless Steel Back I/O

- Highly Durable Components

- DIGI+ VRM

ASUS Exclusive Features:

- GPU Boost

- AI Suite 3

- Ai Charger+

- USB 3.1 Boost

- Disk Unlocker

ASUS Quiet Thermal Solution:

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 3

ASUS EZ DIY:

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Q-Design:

- ASUS Q-Shield

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- ASUS Q-Slot

- ASUS Q-DIMM

Media Streamer

RAMCache

Operating System Support:

Windows 10, 64bit

Windows 8.1, 64bit

Windows 7, 32bit/64bit

BIOS:

128MB Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, F12 PrintScreen function and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:

WfM 2.0, DMI 3.0, WOL by PME, PXE

Support Disc:

Drivers

ASUS Utilities

ASUS EZ Update

Anti-virus software (OEM version)
