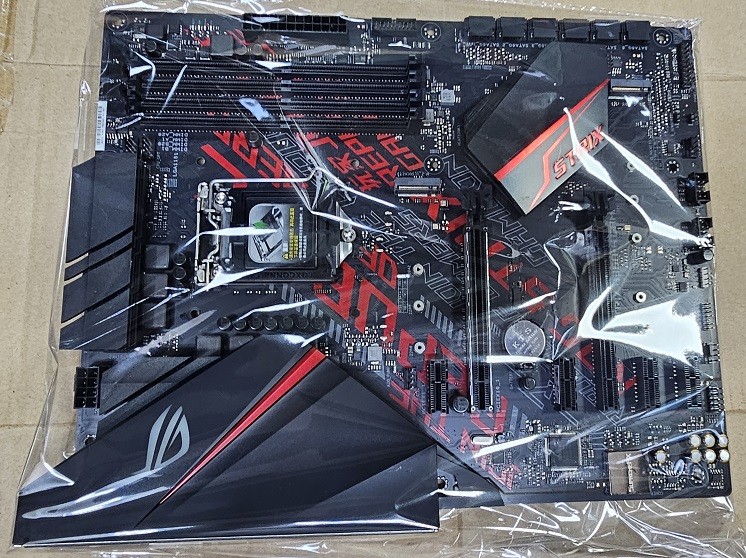

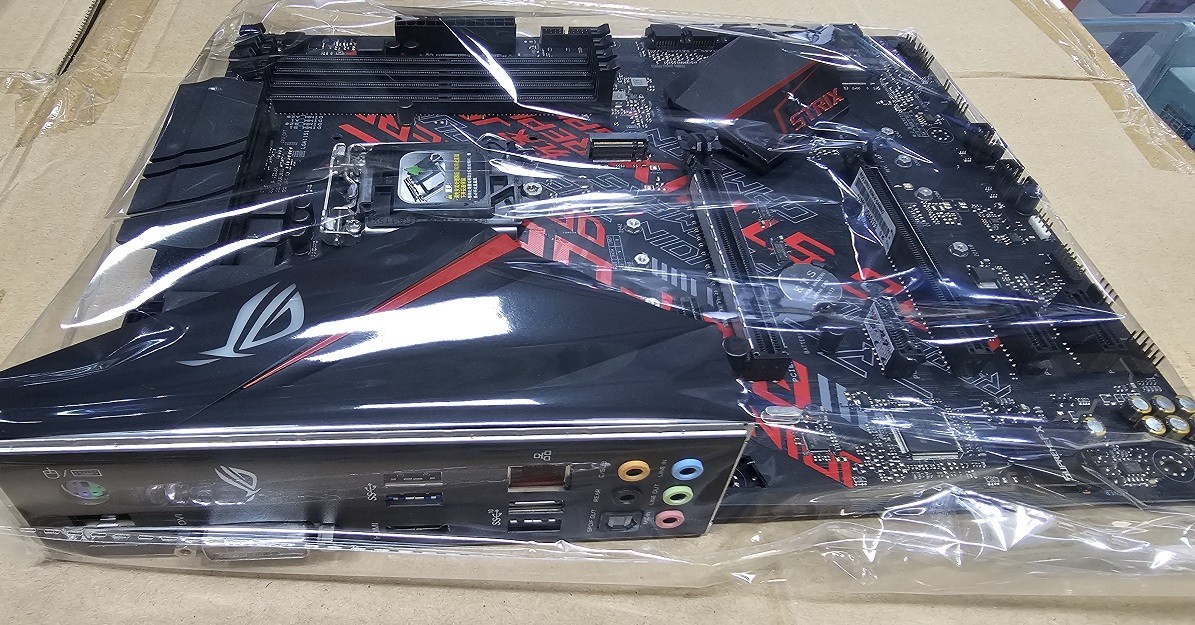

ASUS ROG STRIX B360-H GAMING FOR 8/9TH GENERATION

CPU

Intel® Socket 1151for 8th Generation Core™ Processors

Supports Intel® 14nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Intel® B360

Memory

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Supports Intel® Extreme Memory Profile (XMP)

** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Dual Channel Memory Architecture

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

2 x PCIe 3.0/2.0 x16 (x16/x4) *1

4 x PCIe 3.0/2.0 x1 *2

Storage

Intel® B360 Chipset :

1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*3

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*4

6 x SATA 6Gb/s port(s)

Intel® Optane™ Memroy Bundled

Intel® Optane™ Memory 16GB M.2 2280, PCIe 3.0 x2

LAN

Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

Anti-surge LANGuard

ROG GameFirst Technology

Audio

ROG SupremeFX8-Channel High Definition Audio CODEC S1220A

- SupremeFX Shielding™ Technology

- Supports up to 32-Bit/192kHz playback

- Dual OP Amplifiers

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- Sonic Radar III

- Sonic Studio III + Sonic Studio Link

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Audio Feature :

- Optical S/PDIF out port(s) at back panel

USB Ports

Intel® B360 Chipset : *5

4 x USB 3.1 Gen 1 port(s)

Intel® B360 Chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, red)

6 x USB 2.0 port(s)

ROG Exclusive Features

ROG RAMCache II

ROG CloneDrive

GameFirst IV

ROG CPU-Z

Overwolf
