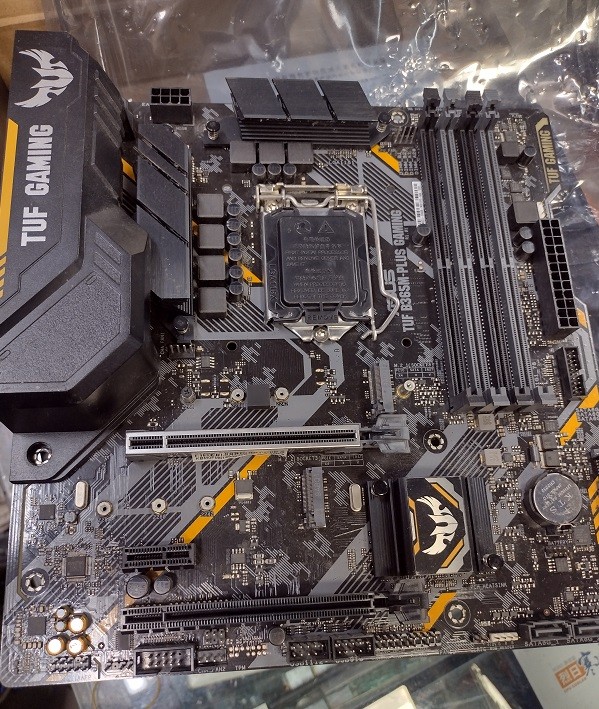

ASUS TUF B365M-Plus Gaming Motherboard 8th/9th Gen 7 days Check Warranty
Inhouse product
-
HyperX FURY 8GB DDR3 1600MHz Desktop RAM
৳1,000.00
Learn more about the ASUS B365M-Plus Gaming
Inaccurate specs? Let us know
Feedback
Model
Brand ASUS
Series TUF
Model B365M-Plus Gaming
Supported CPU
CPU Socket Type LGA 1151 (300 Series)
CPU Type Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Chipsets
Chipset Intel B365
Onboard Video
Onboard Video Chipset Intel HD Graphics
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 2666/2400/2133 MHz
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (max at x4 mode)
PCI Express x1 1 x PCIe 3.0/2.0 x1
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 Type-A up to 5Gbps
2 x USB 2.0
8-channel Audio I/O
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors 1 x Addressable RGB header
1 x Aura RGB Strip Header
2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
