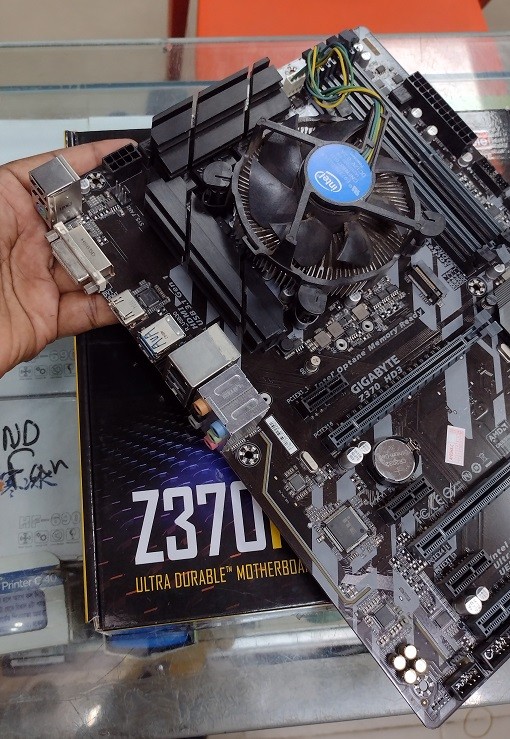

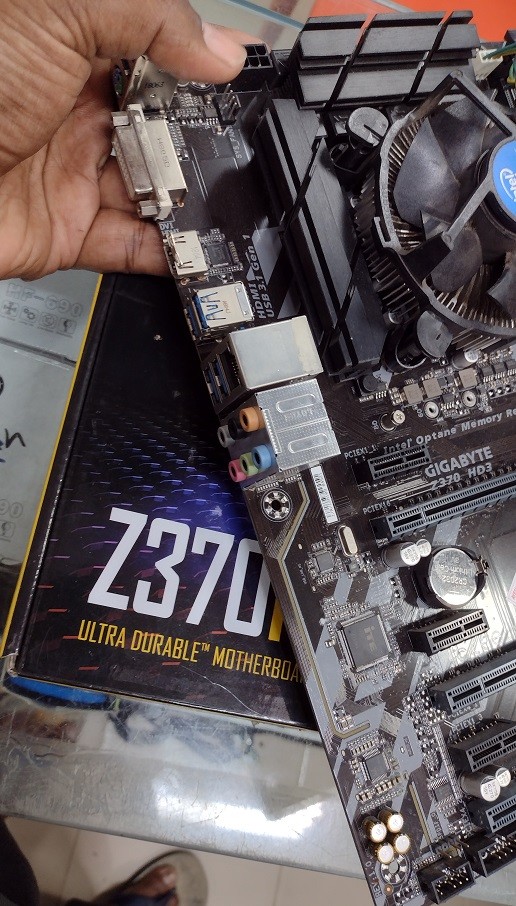

Gaming GIGABYTE Z370 HD3 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

GIGABYTE Z370 HD3 HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

Description

Learn more about the GIGABYTE Z370 HD3 (rev. 1.0)

Inaccurate specs? Let us know

Feedback

Model

Brand GIGABYTE

Model Z370 HD3 (rev. 1.0)

Supported CPU

CPU Socket Type LGA 1151 (300 Series)

CPU Type Only Support for 8th Generation Intel Core i7 / i5 / i3 processors in the LGA1151 package

* Not backward compatible with older generation of LGA 1151 CPUs

Chipsets

Chipset Intel Z370

Onboard Video

Onboard Video Chipset Integrated Graphics Processor-Intel HD Graphics support:

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1GB

Memory

Number of Memory Slots 4x288pin (DDR4)

Memory Standard DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

Maximum Memory Supported 64GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

PCI Express x1 3 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices

SATA 6Gb/s 6 x SATA 6Gb/s

M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

SATA RAID 0/1/5/10

Onboard Audio

Audio Chipset Realtek ALC892

Audio Channels 2/4/5.1/7.1-channel

Support for S/PDIF Out

Onboard LAN

LAN Chipset Intel GbE LAN chip

Max LAN Speed 1Gbps

Rear Panel Ports

Back I/O Ports 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A

PS/2 1 x PS/2 keyboard/mouse port

Video Ports 1 x DVI-D port

HDMI 1 x HDMI

RJ45 1 x RJ45

USB 3.1 4 x USB 3.1 Gen 1 ports

USB 1.1/2.0 2 x USB 2.0

Audio Ports 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

Internal I/O Connectors

Onboard USB 2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

Other Connectors 1 x CPU fan header

3 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)

1 x parallel port header

1 x serial port header

1 x Clear CMOS jumper

Physical Spec

Form Factor ATX

LED Lighting RGB

Dimensions (W x L) 12.0" x 8.9"

Power Pin 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector
