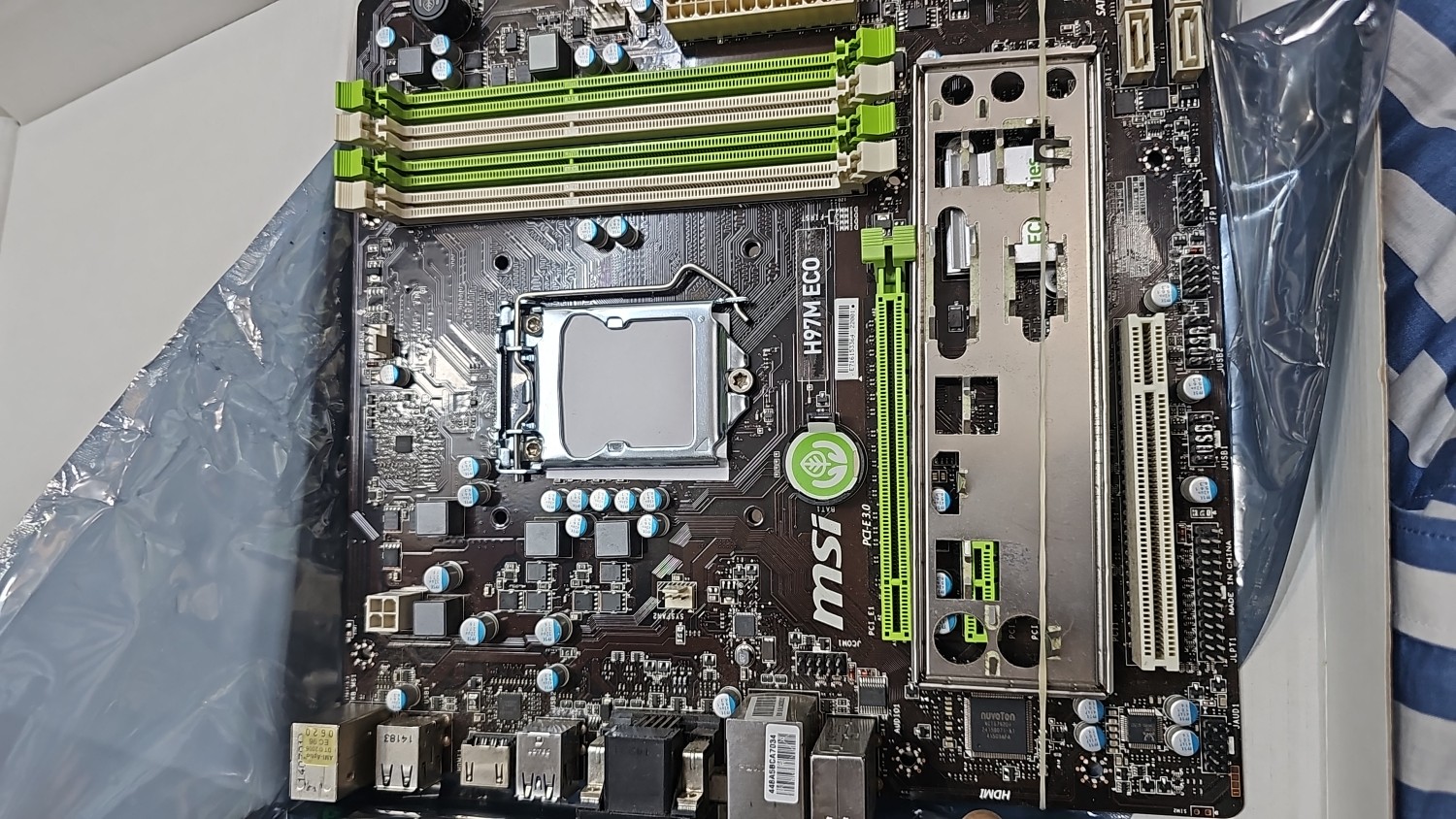

MSI H97M Eco LGA 1150 Intel H97 HDMI 1 Year Warranty Motherboard

Learn more about the MSI H97M Eco

Inaccurate specs? Let us know

Feedback

Model

Brand MSI

Model H97M Eco

Supported CPU

CPU Socket Type LGA 1150

CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 4th Gen (LGA 1150) / Intel Core 5th Gen (LGA 1150) / Pentium

Chipsets

Chipset Intel H97

Onboard Video

Onboard Video Chipset Supported only by CPU with integrated graphic

Memory

Number of Memory Slots 4x240pin

Memory Standard DDR3 1600/1333/1066 MHz

Maximum Memory Supported 32GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 3.0 x16 1 x PCI Express 3.0 x16

PCI Express x1 2 x PCI Express x1

PCI Slots 1 x PCI Slot

Storage Devices

Serial ATA (SATA) 6 x SATA 6Gb/s

SATA RAID 0/1/5/10

Onboard Audio

Audio Chipset Realtek ALC887

Audio Channels 8 Channels

Onboard LAN

LAN Chipset Intel I218-V

Max LAN Speed 1Gbps

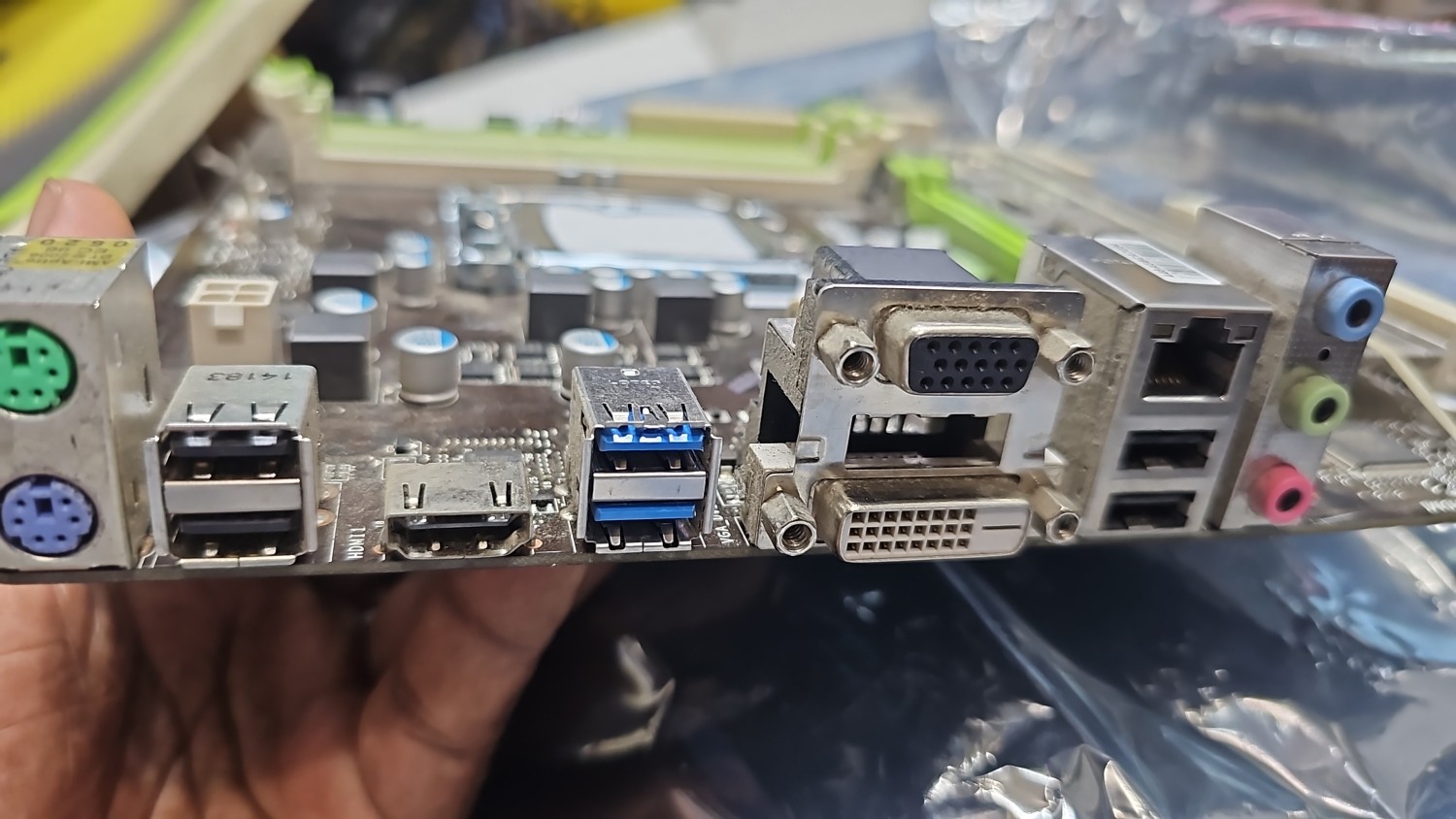

Rear Panel Ports

Back I/O Ports 1 x HDMI / 2 x PS/2 / 2 x USB 3.0 / 4 x USB 2.0/1.1

PS/2 2

Video Ports D-Sub + DVI

HDMI 1 x HDMI

USB 3.0 2 x USB 3.0

USB 1.1/2.0 4 x USB 2.0

Audio Ports 3 Ports

Internal I/O Connectors

Other Connectors 1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x 4-pin CPU fan connector

1 x 4-pin system fan connector

1 x 3-pin system fan connector

1 x Clear CMOS jumper

1 x Chassis Intrusion connector

1 x Front panel audio connector

1 x Parallel port connector

2 x System panel connectors

1 x Serial port connector

1 x TPM module connector

1 x ECO button

Physical Spec

Form Factor Micro ATX

Dimensions (W x L) 9.6" x 9.3"

Power Pin 24 Pin

Features

Features Supports 4th and 5th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket

Supports DDR3-1600 Memory

USB 3.0 + SATA 6Gb/s

ECO Tech Design: Industry leading HW/SW design to optimize power

ECO Center Pro: Friendly GUI, simple to operate with three mode

ECO Performance: 100% performance, 24/7 stable and green

Guard-Pro: Improved Protection and Power Efficiency

Military Class 4: Top Quality & Stability

Click BIOS 4: Easily Fine-tune Your System

4K UHD Support: Ultra-high Definition Visual Experience

Intel Gigabit LAN: Always connected with Intel Gigabit LAN networking

Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds

M-Flash: Simply Update & Backup Your BIOS

Live Update 6: Easily Update The Latest BIOS & Drivers
