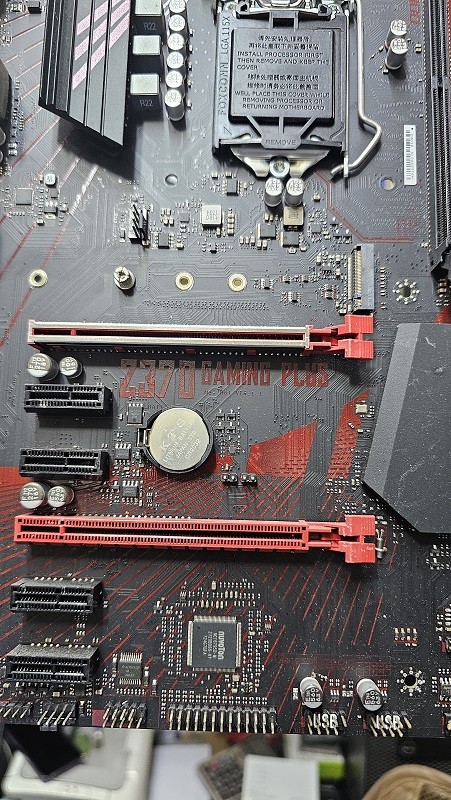

MSI Z370 GAMING PLUS Motherboard 100% fresh Condition

Learn more about the MSI Z370 GAMING PLUS

Inaccurate specs? Let us know

Feedback

Model

Brand MSI

Model Z370 GAMING PLUS

Supported CPU

CPU Socket Type LGA 1151 (300 Series)

CPU Type Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket

* Not backward compatible with older generation of LGA 1151 CPUs

Chipsets

Chipset Intel Z370

Onboard Video

Onboard Video Chipset Supported only by CPU with integrated graphic:

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60Hz

* No Display support when using the Processor model with suffix "F"

Memory

Number of Memory Slots 4x288pin (DDR4)

Memory Standard DDR4 4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133

Maximum Memory Supported 64GB

Channel Supported Dual Channel

Expansion Slots

PCI Express 3.0 x16 2 x PCIe 3.0 x16 slots (support x16/x4 mode)

PCI Express x1 4 x PCIe 3.0 x1 slots

Storage Devices

Serial ATA (SATA) 6 x SATA 6Gb/s ports*

* The SATA1 port will be unavailable when M.2 SATA SSD has been installed in M.2 slot.

M.2 1 x M.2 slots (Key M)

- Support up to PCIe 3.0 x4 and SATA 6Gb/s

- Supports 2242/2260/2280/22110 storage devices

Intel Optane Ready Yes

SATA RAID 0/1/5/10

Onboard Audio

Audio Chipset Realtek ALC892

Audio Channels 7.1 Channels

Onboard LAN

LAN Chipset Intel I219-V

Max LAN Speed 1Gbps

Rear Panel Ports

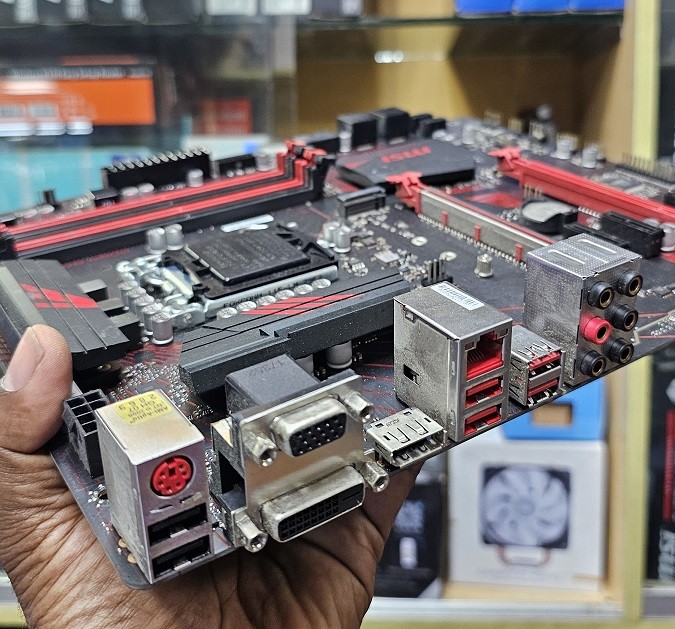

Back I/O Ports 1 x DisplayPort / 1 x D-Sub / 1 x DVI-D / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 / 6 x Audio Jacks

Internal I/O Connectors

Onboard USB 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

Other Connectors 1 x 4-pin CPU fan connector

1 x 4-pin water pump fan connector

4 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x RGB LED connector

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Parallel port connector

1 x Serial port connector

1 x Clear CMOS jumper

Physical Spec

Form Factor ATX

LED Lighting RGB

Dimensions (W x L) 12.0" x 9.6"

Power Pin 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

Features

Features Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket

Supports DDR4 Memory, up to 4000+(OC) MHz

Lightning Fast Game experience: 1 x TURBO M.2, Intel Optane Memory Ready

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

DDR4 Boost: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost

GAMING LAN, powered by Intel: The best online gaming experience with lowest latency and bandwidth management

MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire

VR Ready: Best virtual reality game experience without latency, reduces motion sickness

Military Class 5, Guard-Pro: Latest evolution with high quality Japanese components for best protection and efficiency

In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast

EZ Debug LED: Easiest way to troubleshoot

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players
